Material Traceability in Hyperbaric Chamber Manufacturing

What "traceability" really means for a chamber

Traceability is a two-way trail. Backward: chamber serial number → work order → weld → heat number → mill test report. Forward: any suspect batch → every chamber, customer, and install site that used that batch.

Most people think traceability means "we have paperwork." It doesn't. Paperwork is the easy part. The harder part is that the paperwork has to work in both directions.

Backward traceability answers a simple question: where did this material come from? You start with a serial number on a finished chamber, follow it to a production batch, follow the batch to its constituent parts, and follow each part back to the heat of steel it was cut from. At the very end of the chain is a mill test report — a document the steel mill itself issued when it poured that heat.

Forward traceability is the direction most suppliers are weakest in. If a steel mill calls back a batch because the chemistry was off, can the chamber manufacturer tell you which finished chambers contained steel from that batch? Can they tell you which customers have those chambers, where they are installed, and how to contact them?

If the answer is no, the chamber is traceable on paper but not in practice. And that distinction matters when something goes wrong.

Why both directions matter. A recall that's scoped to one batch and a hundred customers is a manageable event. A recall that has to cover every chamber ever shipped because the manufacturer can't isolate the affected units is a company-ending event. The forward-traceability system is what separates the two.

For a hyperbaric chamber specifically, the chain has more links than most pressure vessels. You're not just tracing one shell. You're tracing:

• The steel or acrylic for the pressure boundary

• The welds that join it

• The viewing window (acrylic) and its own batch history

• Seals, valves, fittings, and their materials

• The oxygen supply system connected to it

• The software version running the controls

Each link has its own documentation, its own batch numbers, and its own manufacturer. A real traceability system treats them as one.

The documents that should arrive with a chamber

If you only ask for one thing, ask for the mill test report. It's the one document that originates outside the chamber maker's own quality system, which is exactly why it's the one you can verify independently.

Every chamber should ship with a documentation package. The contents vary by pressure rating and chamber type, but a complete package for a hard-shell chamber typically looks something like this.

Two of these deserve a closer look because they're commonly confused.

MTR vs CoC — why both matter

The mill test report comes from the steel mill. It's the steel mill's own test data for a specific heat of steel — chemistry, tensile strength, hardness, impact resistance. It carries a heat number, and that heat number should be physically stamped somewhere on the finished steel plate or forging.

The certificate of conformance comes from the chamber manufacturer. It says "this chamber was built to the spec we agreed on." It does not contain test data. It contains an assertion.

Both matter. The MTR tells you what the steel actually is. The CoC tells you what was done with it. Neither proves that the steel in the chamber matches the MTR in the file. For that, you need to match heat numbers — which is the topic of the next section.

European buyers will see references to EN 10204, which classifies inspection documents into four types:

• 2.1 — declaration of conformance with the order (no test data)

• 2.2 — test report based on non-specific inspection

• 3.1 — test report based on specific inspection, issued by the mill

• 3.2 — test report based on specific inspection, with both mill and an independent third party signing

For pressure-bearing parts, a 3.1 certificate is the practical baseline. 3.2 is the safer choice when you want the test report counter-signed by a party that doesn't have a commercial interest in the sale.

Material identity: heat numbers, marking, and where it breaks

Heat numbers are the bridge between paper and physical material. They have to appear in the MTR, on the steel, on the chamber nameplate, and on the production record. If they don't match, the chain is broken.

Every batch of steel comes out of a furnace with an identifier called a heat number. The mill stamps it on every plate, bar, or forging in that heat. When the chamber manufacturer cuts and welds that steel into a vessel, they carry the heat number forward into their production records. When the chamber is finished, the heat number (or a derived identifier) ends up on the nameplate.

So the same heat number — or a clear chain of references back to it — should appear in three places:

1. The MTR — the original test report from the mill‍
2. The steel itself — hard-stamped on the plate, usually near a cut edge‍
3. The chamber — on the nameplate or production record

When all three line up, you have a real chain. When they don't, something is off — maybe a paperwork error, maybe a substitution, maybe worse. Either way, you don't ship until you know which.

Mark transfer: where it gets tricky

Once a steel plate gets cut into smaller pieces for a chamber, the original mill stamp might end up on a piece that goes inside the assembly and is no longer visible. ASME Section VIII (the general U.S. pressure-vessel code) addresses this with rules about transferring identification marks when the original gets cut off. The new piece has to carry forward enough identifying information that the inspector can trace it back to the original heat.

This is where a lot of chains quietly break. The plate comes in with a heat number stamped on it. The plate gets cut into four pieces for a chamber shell. Three of those pieces now have no visible stamp. If the manufacturer didn't transfer the number into the production record at the time of cutting, you have four anonymous chunks of metal that nobody can trace back to a heat number. The MTR exists. The metal exists. The link between them doesn't.

How to verify

Ask for three things and compare them yourself:

1. The heat number on the MTR
2. The heat number hard-stamped on any visible plate or flange
3. The heat number on the chamber nameplate or production record

If they all match, the chain holds. If the MTR says one thing and the visible stamp says another, that's not a paperwork error — that's a substitute material you can't verify.

An MTR tells you what the steel mill says the chemistry was. It doesn't tell you what the metal on your chamber actually is. The two can drift apart — through substitution, mix-ups, or outright fraud. The way to close the gap is positive material identification: a portable XRF (X-ray fluorescence) or OES (optical emission spectroscopy) analyzer held against the actual metal to read its chemistry in seconds.

PMI is a one-time check per part. In practice it's commonly used at receiving inspection for critical components and after long storage periods. For a buyer who doesn't have the equipment, the equivalent is asking the supplier to provide a PMI report from a third-party inspector.

PVHO-1: the standard that exists only for human-occupancy vessels

PVHO-1 is the only pressure-vessel standard written specifically for vessels people sit inside. It sets its own rules for windows, materials, fabrication, and testing. General pressure-vessel codes don't cover the things PVHO-1 covers.

ASME publishes a family of pressure-vessel codes. The one most people have heard of is Section VIII — the general code for unfired pressure vessels. It's what governs most tanks, reactors, and process equipment you'll see in industry.

For pressure vessels that humans go inside, there's a separate standard: ASME PVHO-1 — Safety Standard for Pressure Vessels for Human Occupancy. It was written because Section VIII doesn't address the things that matter when the pressure vessel is also a room someone is breathing in. Windows are the obvious example. A regular pressure vessel doesn't have a 100 mm thick acrylic viewport. The material rules, the testing rules, and the lifecycle rules for that viewport are all in PVHO-1, not Section VIII.

PVHO-1 applies to vessels where the pressure differential exceeds a specific threshold. The threshold is 2 psi (about 14 kPa) of pressure difference between inside and outside. Above that, you're in PVHO-1 territory. Below that, you're not.

The 2 psi threshold and why the math matters

Here's where a lot of confusion happens. People read "2 psi threshold" and conclude that some chamber types are exempt. The math is more specific than that.

The conversion uses 1 atm = 14.6959 psi, so gauge pressure (psig) = (ATA × 14.6959) − 14.6959.

The 1.1 ATA row is the only one that sits below the threshold. From 1.3 ATA upward, the chamber is operating well above it. So the casual claim that "soft chambers don't fall under PVHO-1" is at best an oversimplification. The actual answer depends on the working pressure, not the chamber type.

A clarification worth keeping. PVHO-1 defines the threshold in gauge pressure (psi), not absolute pressure (ATA). Some marketing materials conflate the two and end up drawing the line in the wrong place. If a supplier claims PVHO-1 doesn't apply to their chamber, ask them to show the math against the 2 psi gauge threshold using your actual working pressure.

The five forms behind an acrylic window

If a chamber has an acrylic viewing window, PVHO-1 requires a closed-loop set of five linked forms. Each one is signed by a different party in the supply chain. Together they prove that the window in your chamber was made from the right material, designed for the right pressure, fabricated correctly, and pressure-tested before going into service.

The five forms close the trail from the resin batch to the finished chamber. If any one is missing, the chain is incomplete — and a window without batch-level traceability is, in the long run, an unauditable window.

Welding and pressure-test records

Welds are where chambers actually fail in service. The records that prove welds were done right are the records most worth asking for.

For a welded pressure vessel, the integrity of the chamber is the integrity of its welds. Three linked records cover the welding side of traceability.

• WPS (Welding Procedure Specification): the qualified procedure that was followed

• PQR (Procedure Qualification Record): the test results that proved the procedure works

• WPQ (Welder Performance Qualification): the test that proved the specific welder was qualified to use that procedure

Every weld on the chamber should be traceable to a specific welder, working under a specific qualified procedure. The map of where each weld is on the chamber — and who made it — is the weld map. Combined with the WPS, PQR, and WPQ records, you have the welding half of the traceability chain.

Non-destructive testing

After the welds are made, they're inspected without cutting them open. The common methods are radiography (X-ray), ultrasonic, dye penetrant, and magnetic particle. Each method catches different flaw types. The NDT report tells you which method was used on which weld and what it found. A chamber with no NDT report, or an NDT report that doesn't cover all critical welds, is one inspection short of a complete record.

The pressure test itself

The final proof is the pressure test. The chamber is filled with water (hydrostatic) or gas (pneumatic) and held above its working pressure for a set time. If it holds, it passes. The record of that test — the pressure reached, the duration, who witnessed it — is the document that says "this vessel was actually proven to hold pressure before it left the factory."

For anyone evaluating a chamber, these are the two records worth asking for by name: the pressure test record and the NDT report. Together they cover the structural proof.

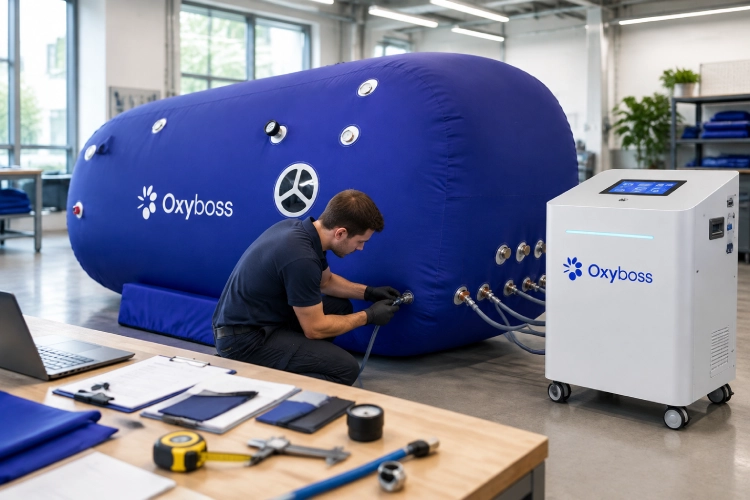

Soft-shell chambers: a different traceability chain

Soft-shell chambers trace different things. No welds, no MTRs, no PVHO-1 windows. Instead: coated-fabric batches, seam records, and seal histories.

Soft-shell chambers sit in a different category from welded steel vessels. They aren't built to ASME Section VIII. They generally aren't built to PVHO-1 either, except in cases where the working pressure actually crosses the 2 psi threshold — which, as shown above, is most working pressures above 1.1 ATA.

Because the structure is different, the traceability chain is different. Here's what changes.

The coated fabric is the part that takes the most abuse in service. It flexes with every pressure cycle, it's exposed to oxygen at elevated concentration, and it's the load-bearing part of the chamber. The batch-level documentation for that fabric — who made it, when, what the lot number was, what testing was done on it — is the closest analog to an MTR.

What you should ask a soft-shell supplier for:

• The coated-fabric lot number on your unit, and the test report tied to that lot

• The seam construction method (RF welding, hot-air welding, etc.) and the qualification record for whoever did the seaming

• The window material, its lot, and the manufacturer

• Test records for cycle life, seam strength, and any over-pressure tests done on the design

• The zipper or closure design — and its replacement cycle if it's a service item

Public documentation on soft-shell traceability is much thinner than for hard-shell. Manufacturers that have this level of detail ready to share are usually the ones who actually maintain it.

A buyer-side gap to know. There's notably less public material on coated-fabric batch traceability, biocompatibility, and oxygen compatibility for soft chambers than there is on steel traceability for hard chambers. That doesn't mean the answers don't exist — it means the buyer has to ask more pointedly, and the supplier should have the answer ready.

How to spot a certificate that doesn't hold up

Real certificates trace back to a party that doesn't have a commercial interest in the sale. The mill's MTR, the NDT inspector's report, the witnessed pressure test — each one comes from someone other than the seller.

The certificate in front of you might be genuine, forged, partially true, or technically true but practically meaningless. The way to tell is to run it through five checks. None of them are exotic — they're all things any buyer can do with a bit of persistence.

1. Check 1: independent mill verification. Contact the steel mill directly using a phone number from their own website, not from the certificate.‍
2. Check 2: document review. Look for the test data, the standards cited, the inspector's actual name and accreditation.‍
3. Check 3: physical match. Compare the heat number on the MTR to the heat number stamped on the actual steel.‍
4. Check 4: independent testing. Commission PMI (XRF/OES) on the actual metal if the stakes warrant it.‍
5. Check 5: quarantine & NCR. If anything doesn't match, isolate the unit and open a non-conformance report before anything else moves.

The single biggest red flag is a document where every signature is from the same company that sold you the chamber. The whole point of an MTR is that it's issued by the steel mill, not the chamber maker. The NDT report should be from a third-party inspection body, not the manufacturer's own QC team. The pressure test should have been witnessed by someone who isn't getting paid by the same invoice.

None of those independent parties need to be expensive or hard to reach. The mill has a quality line. The NDT inspector has an accreditation number you can look up. The pressure test witness can be any qualified inspector. If a supplier won't tell you who those parties are, that's a signal in itself.

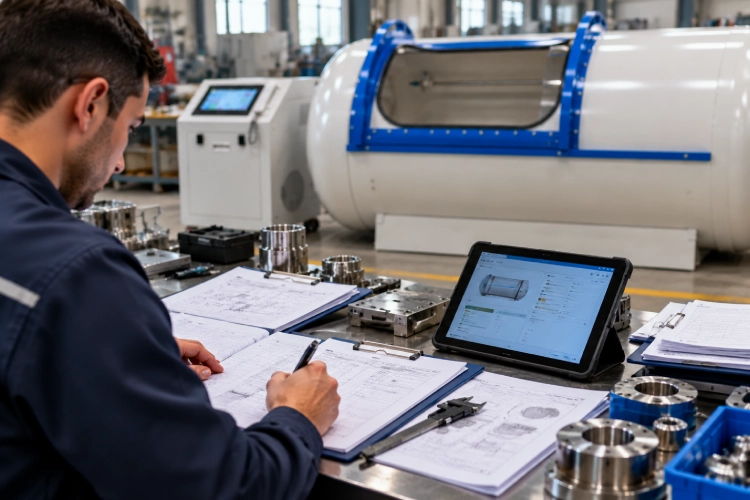

Records, retention, and digital traceability

Records that get thrown away are records that don't exist. Retention policy is part of the traceability chain — even perfect documentation loses its value if it's purged before anyone needs to look at it.

A traceability system that loses its records in five years isn't really a traceability system. It's a paperwork system that happens to work for the warranty period.

How long should records be kept?

The right retention horizon depends on what the record covers.

What digital traceability adds — and what it doesn't

Modern traceability systems layer digital tools on top of paper: ERP systems that track batch numbers through production, MES systems that record each operation electronically, QR codes or RFID tags that link physical parts to digital records, and — at the more ambitious end — blockchain-style audit trails.

These tools make the chain faster to navigate and harder to lose. They don't, by themselves, prove anything new. A QR code on a chamber tells you which database entry to look at. It doesn't tell you whether the steel inside the chamber matches the database. Independent testing is still the only way to close that gap.

The honest way to think about digital traceability: it makes a good system faster, and a bad system look better than it is. Use the digital tools, but verify with the physical ones.

What to ask before you place the order

If you only get one document out of this guide, get this checklist. It's the list of records and answers that tell you whether a chamber has a real traceability chain or just a paper one.

The list below is what to send to any supplier before you sign a purchase order. A trustworthy supplier should be able to answer every item. The list is written so you can copy it directly.

• Mill test reports (MTRs) for every pressure-boundary steel part, with heat numbers that match the stamps on the metal

• Certificate of conformance for the assembled chamber

• Weld map, WPS, PQR, and WPQ records for every weld on the pressure boundary

• NDT reports covering all critical welds (method, scope, results, inspector accreditation)

• Pressure test record: hydrostatic or pneumatic, with the test pressure reached, duration, and witness

• For acrylic windows: all five PVHO-1 forms (VP-1 through VP-5)

• Window batch number, manufacturer, and material grade

• Serial number and nameplate data on the actual unit

• Retention policy for production and material records

• Recall scoping procedure: how you would be notified if a batch were called back

• Forward-traceability record: which customers received chambers from a given production batch

• Third-party inspection body for NDT (name + accreditation number)

Anything on this list that the supplier can't answer, or won't answer, is a data point about their system. It doesn't necessarily mean the chamber is bad — it means the documentation can't be verified to that depth. Decide accordingly.

Want the same checklist as a printable PDF? Download the buyer due-diligence checklist →

A note on what this guide doesn't claim

Material traceability is an engineering and documentation topic. This guide stays on that side of the line.

We haven't talked about what hyperbaric chambers are used for, because that's outside the scope of material traceability and outside what we cover as a non-medical equipment maker. Chambers in the non-medical / wellness category are positioned for general wellness and recovery uses, not for any medical condition. If you're evaluating a chamber for medical purposes, the regulatory framework is different and the documentation requirements go beyond what's covered here.

The standards referenced in this guide — PVHO-1, Section VIII, EN 10204, the various ASTM and NFPA documents — are public technical standards. We've cited them as references, not as endorsements of any specific chamber or supplier. Verify any specific claim against the standard text and the edition you're working with.

What is material traceability in hyperbaric chamber manufacturing?

It's the chain of records that connects a finished chamber back to the materials it was made from — steel batches, welds, windows, seals — and forward to the customers and install sites where that chamber ended up. The chain works in both directions, which is what makes it useful for recalls, audits, and buyer verification.

What documents should I require with a hyperbaric chamber purchase?

Mill test reports (MTRs) for every pressure-boundary steel part, a weld map with WPS/PQR/WPQ records, NDT reports for critical welds, a pressure test record, the certificate of conformance, and — for acrylic windows — the five PVHO-1 forms (VP-1 through VP-5). The full checklist is in section 9 above.

What's the difference between an MTR and a certificate of conformance?

The MTR (mill test report) comes from the steel mill and contains actual test data for a specific heat of steel — chemistry, tensile strength, hardness. The CoC (certificate of conformance) comes from the chamber manufacturer and asserts that the chamber was built to the agreed spec, without test data. Both matter. Neither alone proves that the steel in the chamber matches the MTR in the file — that's what heat number matching is for.

What does PVHO-1 actually require for acrylic windows?

PVHO-1 requires a closed-loop set of five forms (VP-1 through VP-5) for each window. They trace from the resin batch through design, fabrication, and final pressure test. The forms are signed by different parties in the supply chain — the acrylic manufacturer, the design certifier, the window fabricator, and the chamber manufacturer. The full table is in section 4.

Is PVHO-1 certification the same as FDA clearance?

No. PVHO-1 covers the structural and material safety of the pressure vessel. FDA clearance concerns medical-device market authorization. They don't substitute for each other, and neither implies the other. Verify them separately, and verify them against the specific model you're buying.

How can I spot a fake or misleading certificate?

Run the five checks in section 7: independent mill verification, document review, physical heat-number match, independent PMI testing if needed, and quarantine if anything fails. The biggest red flag is a certificate where every signature is from the same company that sold you the chamber — the MTR should come from the mill, the NDT report from a third-party inspector, and the pressure test from a witness who isn't on the seller's payroll.

‍
